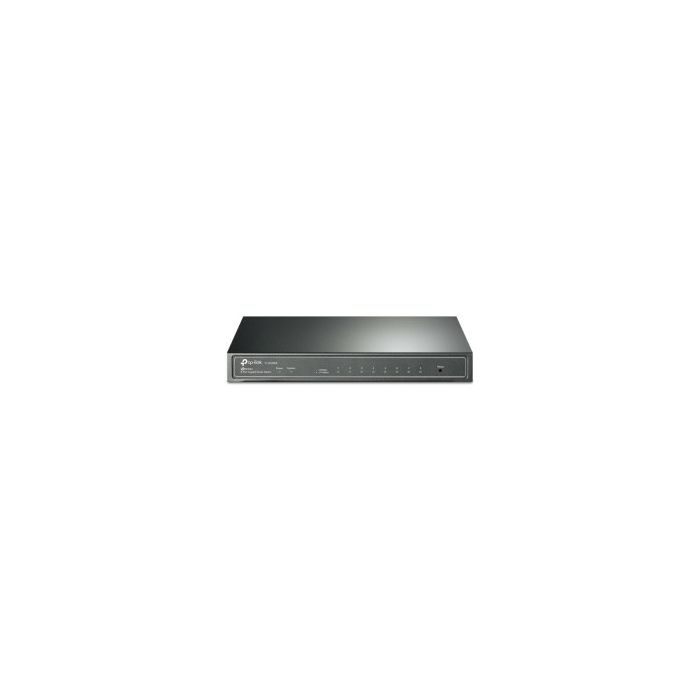

TP-Link Omada JetStream 8-port Gigabit L2+ upravljiv preklopnik (Switch), 8×10/100/1000M RJ45 ports, VLAN, Desktop metalno kućište

- Full Gigabit Ports: 8× gigabit RJ45 ports provide high-speed connections - Integrated into Omada SDN: Centralized Cloud Management, and Intelligent Monitoring - Centralized Management: Cloud access and Omada app for ultra convenience and easy management - Robust Security Strategies: 802.1Q VLAN, ACL, Port Security, Storm Control, and more - Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping - Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features Specifications HARDWARE FEATURES - Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x - Interface: 8× 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) - Network Media: * 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) * 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) - Fan Quantity: Fanless - Power Supply: * 12 VDC/1 A External Adapter or * Obtain Power from PoE Source - Power Consumption: 6.4 W (220 V/50 Hz) - Dimensions (W×D×H): 209×126×26 mm PERFORMANCE - Bandwidth/Backplane: 16 Gbps - Packet Forwarding Rate: 11.9 Mpps - MAC Address Table: 8K - Jumbo Frame: 9 KB SOFTWARE FEATURES - Quality of Service: * 802.1p CoS/DSCP priority * 8 priority queues * Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin) * Queue Weight Config * Bandwidth Control: Port/Flow based Rating Limit * Smoother Performance * Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control - L2 and L2+ Features: * 16 IP Interfaces: Support IPv4/IPv6 Interface * Static Routing: 32 IPv4/IPv6 Static Routes * DHCP Server * DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay * DHCP L2 Relay * Static ARP * Proxy ARP * Gratuitous ARP * Link Aggregation: Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group * Spanning Tree Protocol: 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security: TC Protect, BPDU Filter/Protect, Root Protect * Loopback Detection * Flow Control: 802.3x Flow Control * Mirroring: Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both * Device Link Detect Protocol (DLDP) * 802.1ab LLDP/ LLDP-MED - VLAN: * VLAN Group: Max. 4K VLAN Groups * 802.1Q tag VLAN * MAC VLAN: 12 Entries * Protocol VLAN * GVRP * Voice VLAN - Access Control List: * Support up to 230 entries * Time-Range: Time Slice, Week Time-Range, Absolute Time-Range, Holiday * Time-based ACL * MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type * IP ACL: Source IP, Destination IP, IP Protocol, TCP Flag, TCP/UDP Source Port, TCP/UDP Destination Port, DSCP/IP TOS * IPv6 ACL * Combined ACL * Rule Operation: Permit/Deny * Policy Action: Mirror, Rate Limit, Redirect, QoS Remark * ACL Rules Binding: Port Binding, VLAN Binding * Actions for flows: Mirror (to supported interface), Redirect (to supported interface), Rate Limit, QoS Remark - Security: * AAA * 802.1X: Port based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability * IP/IPv6-MAC Binding: 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection * IP Source Guard: 253 Entries, Source IP+Source MAC * IPv6 Source Guard: 183 Entries, Source IPv6 Address+Source MAC * DoS Defend * Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port * Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode * Port Isolation * Secure web management through HTTPS with SSLv3/TLS 1.2 * Secure Command Line Interface (CLI) management with SSHv1/SSHv2 * IP/Port/MAC based access control - Management: * Web-based GUI * Command Line Interface (CLI) through telnet * SNMPv1/v2c/v3 * SNMP Trap/Inform * RMON (1,2,3,9 groups) * SDM Template * DHCP/BOOTP Client * Dual Image, Dual Configuration * CPU Monitoring * Cable Diagnostics * EEE * SNTP * System Log OTHERS - Certification: CE, FCC, RoHS - Package Contents: TL-SG2008, Power Adapter, Installation Guide, Rubber Feet - System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux - Environment: * Operating Temperature: 0C to 40C (32F to 104F) * Storage Temperature: -40C to 70C (-40F to 158F) * Operating Humidity: 10% - 90% non-condensing * Storage Humidity: 5% - 90% non-condensing
