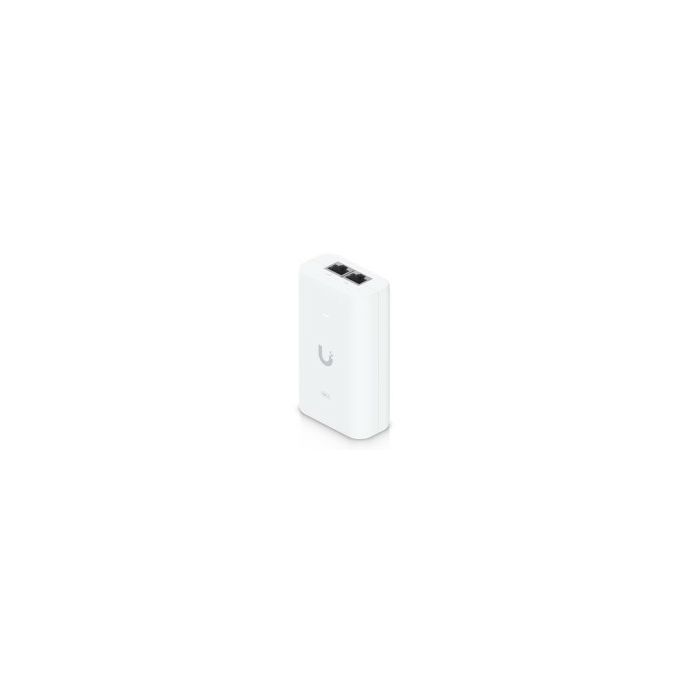

Ubiquiti PoE++ Adapter (60W)

- An adapter that can power UniFi PoE++ devices with wireless mesh applications, or offload PoE switch power dependencies. Features - Delivers up to 60W of PoE++ - Even more power for UA Hub, G4 PTZ, and other PoE++ devices - Surge, peak pulse, and overcurrent protection - Contains RJ45 data input, AC cable with earth ground, and PoE++ output - LED indicator for status monitoring Specifications - Model: U-PoE++ - Dimensions: 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") - Weight: 210 g (7.4 oz) - Output voltage: 48V DC 1.25A - LAN activity indicator: No - Gigabit LAN port: Yes - Remote reset capability: No - Reset button: No - Rated voltage: 100—240V AC 50/60Hz - Input current: • 1.3A 120V AC • 0.75A 230V AC - Inrush current • <100A peak 120V AC • <200A peak 230V AC - Efficiency: 85+% - Output ripple: 1% max. - Switching frequency: 65 kHz - Line regulation: ? 1% - Load regulation: ? 3% - 2-pair powering: No - 4-pair powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) - AC connector: IEC-320 C6 - Data In / PoE: RJ45 shielded socket - Surge protection: Difference and common mode - Clamping protection: 11V data, 60V power - Max. surge discharge: 1500A (8/20 µs) power - Peak pulse current: 36A (10/1000 µs) data - Shunt capacitance: <5 pF data - Response time: <1 ns - Power method: Universal AC input, 100—240V AC, 50/60 Hz - Power supply: AC/DC - Supported voltage range: 100—240V AC - Max. PoE+ wattage per port by PSE: 60W - Ambient operating temperature: 0 to 40° C (32 to 104° F) - Storage temperature: -30 to 70°C (-22 to 158° F) - Ambient operating humidity: 10 to 95% noncondensing - Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
